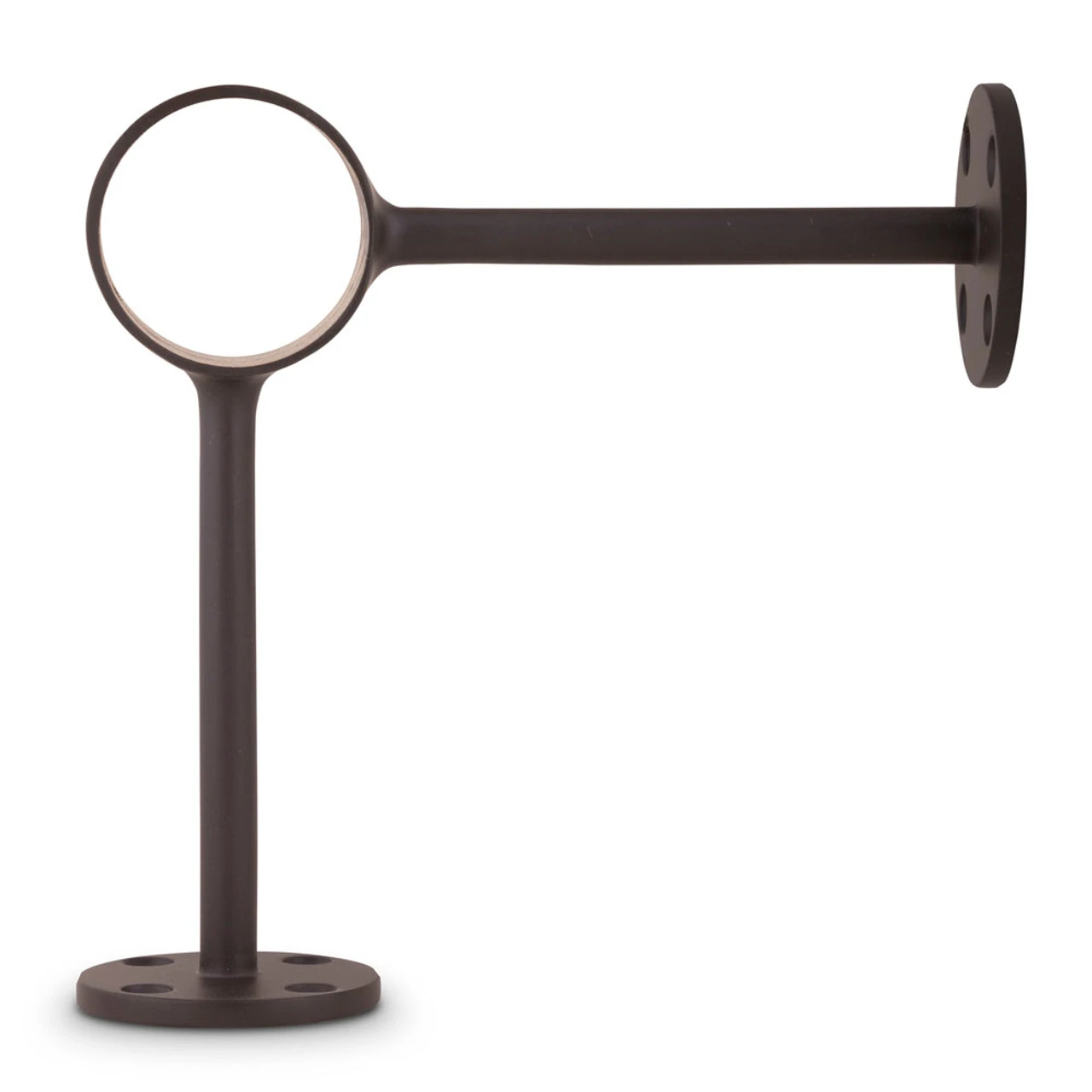

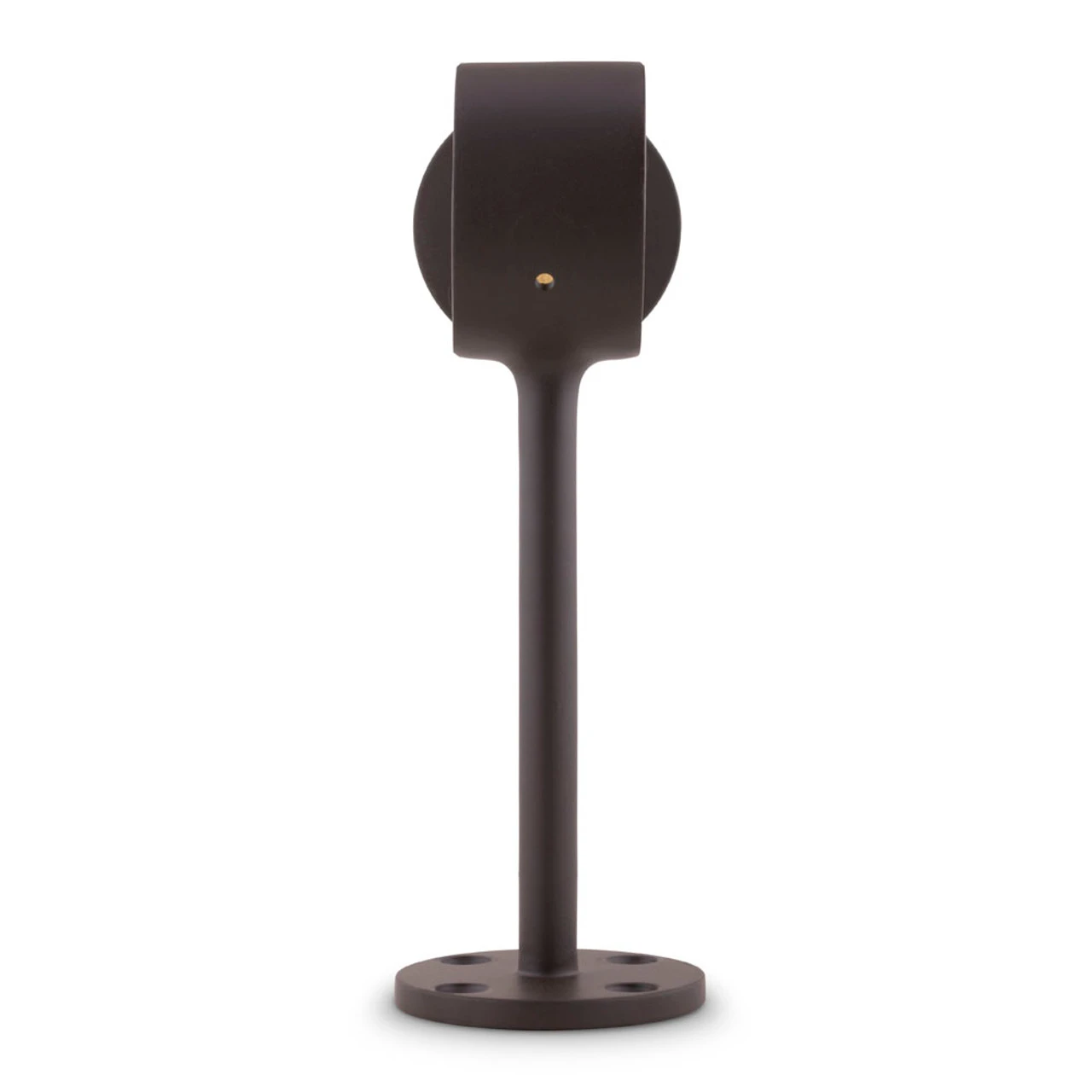

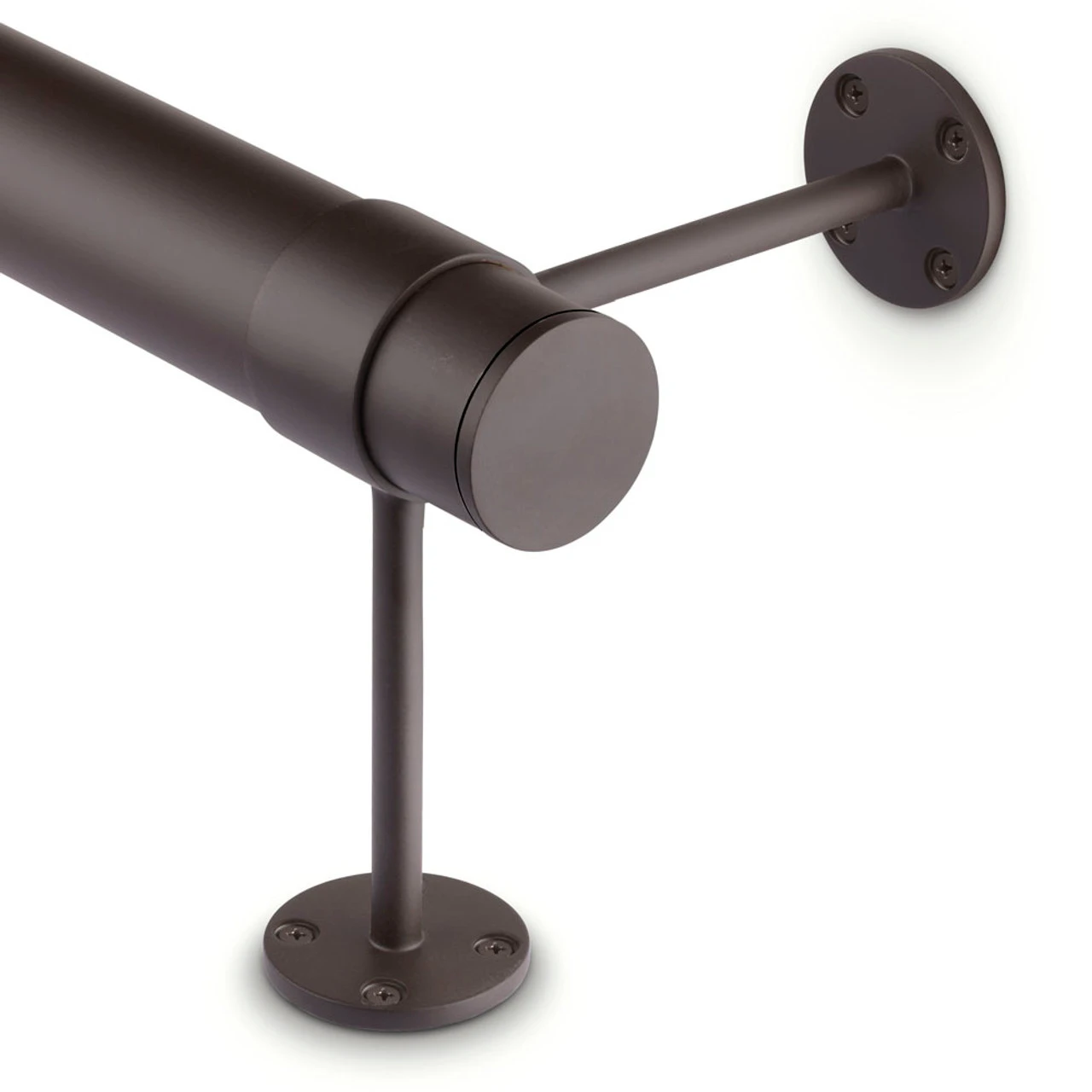

90 Deg. Post Foot Rail Bracket – Oil Rubbed Bronze – 2″ OD

Our 90-degree brackets attach securely to both the face of your bar (or wall) and the floor for extra stability. In a straight, 7″ x 7″ design, these bar foot rail brackets are built for simplicity in measuring and placing them during installation.

These stainless steel brackets sit exactly 5.89″ from the floor to the center of the tubing, and 5.89″ from the facing of the bar to the center of the tubing. With two contact points, this double-footed bar rail bracket combines a sturdy build and a practical design. For proper support, bar rail brackets should be placed at each end of the tubing, plus one for every 4-foot increment.

The angular design of this bracket really accents the look of your foot rail while the oil rubbed bronze finish will precisely match your .

For help deciding which bracket will work best for your bar project, check out our for more information on each of the options.

Installation instructions:

1. Measure & mark holes for mounting screws.
2. Attach brackets to the face of the bar and floor with the 8 mounting screws.
3. Secure tubing to bracket by fastening set screws through hole in the bottom of bracket.

For more detailed instructions on how to install bar rail read our .

Care & Maintenance:

Care and maintenance of bar foot rail varies by finish. Given the nature of the product, typical wear and tear may be noticed with your bar rail over time, such as scuffs, scratches and dirt. Our guide to on how to properly prep, clean & maintain all bar rail finishes.

• Made of stainless steel with oil rubbed bronze finish
• For use with 2″ Outside Diameter bar rail tubing
• Bracket arm mounts to the face of bar and floor
• Brackets should be used at both ends of rail tubing, plus one at every 4′ increment
• Mounting screws included
• Suitable for indoor use only (Clear coat protection available )

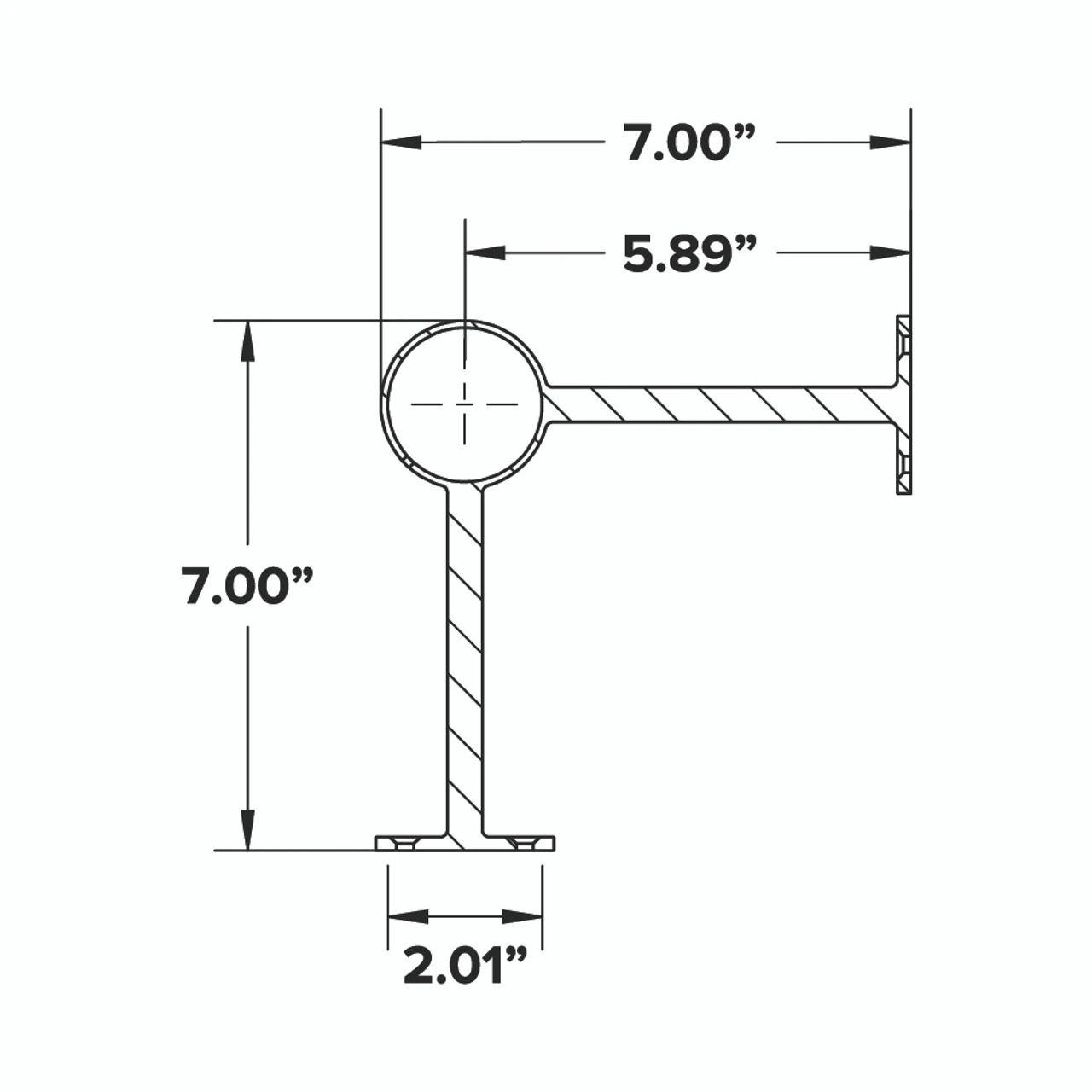

• Bracket Width: 7.00”
• Bracket Height: 7.00”
• Opening Diameter: 2.01” (for 2” OD tubing)
• Wall to Center of Tubing (Horizontal Center Point): 5.89”
• Floor to Center of Tubing (Vertical Center Point): 5.89”
