Ball Lock Quick Disconnects Kit W/ 5′ Barrier Line Jumper

Get your kegged homebrew coffee, kombucha, or cocktail on tap quickly and easily with kit designed to work with ball lock Cornelius (Corny) kegs.

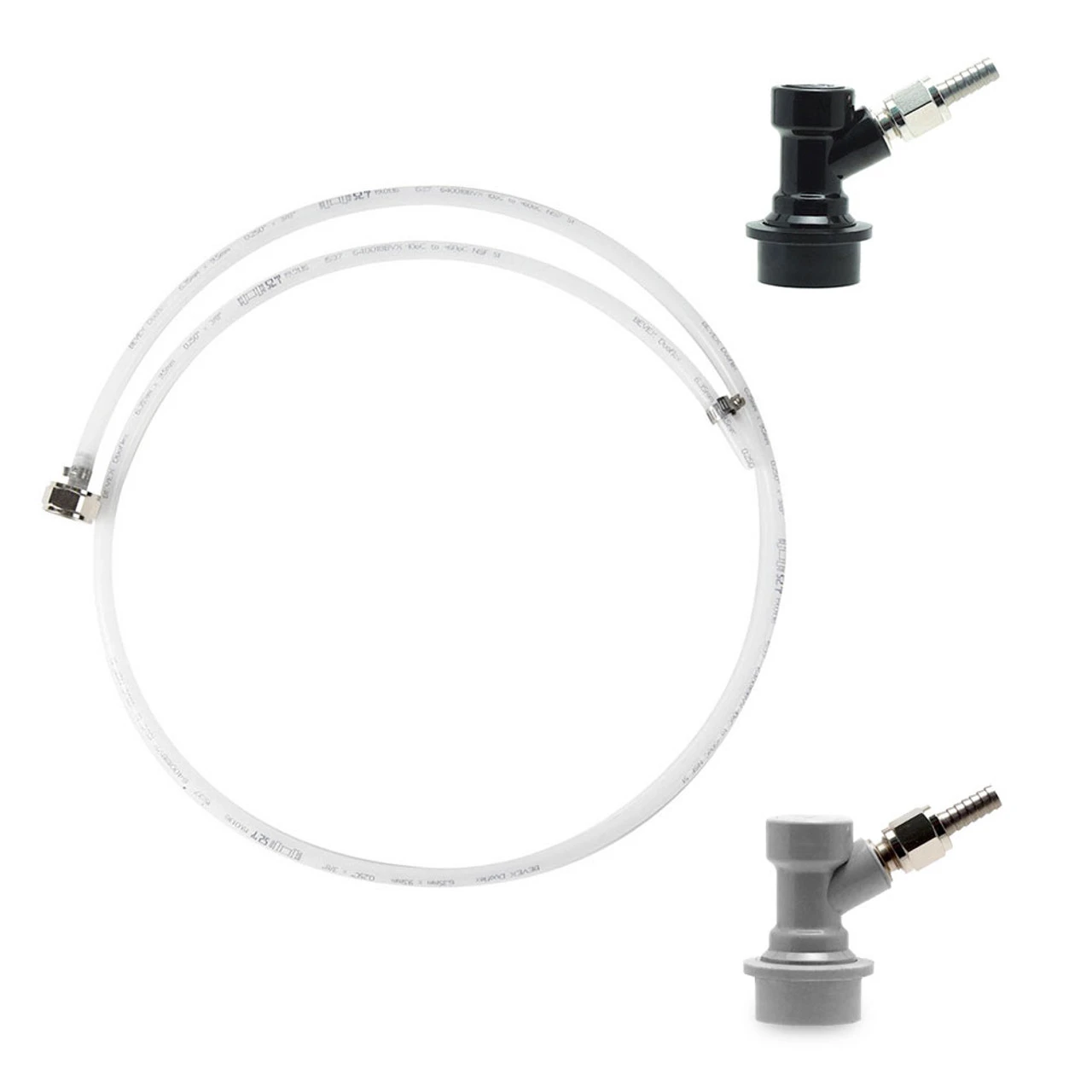

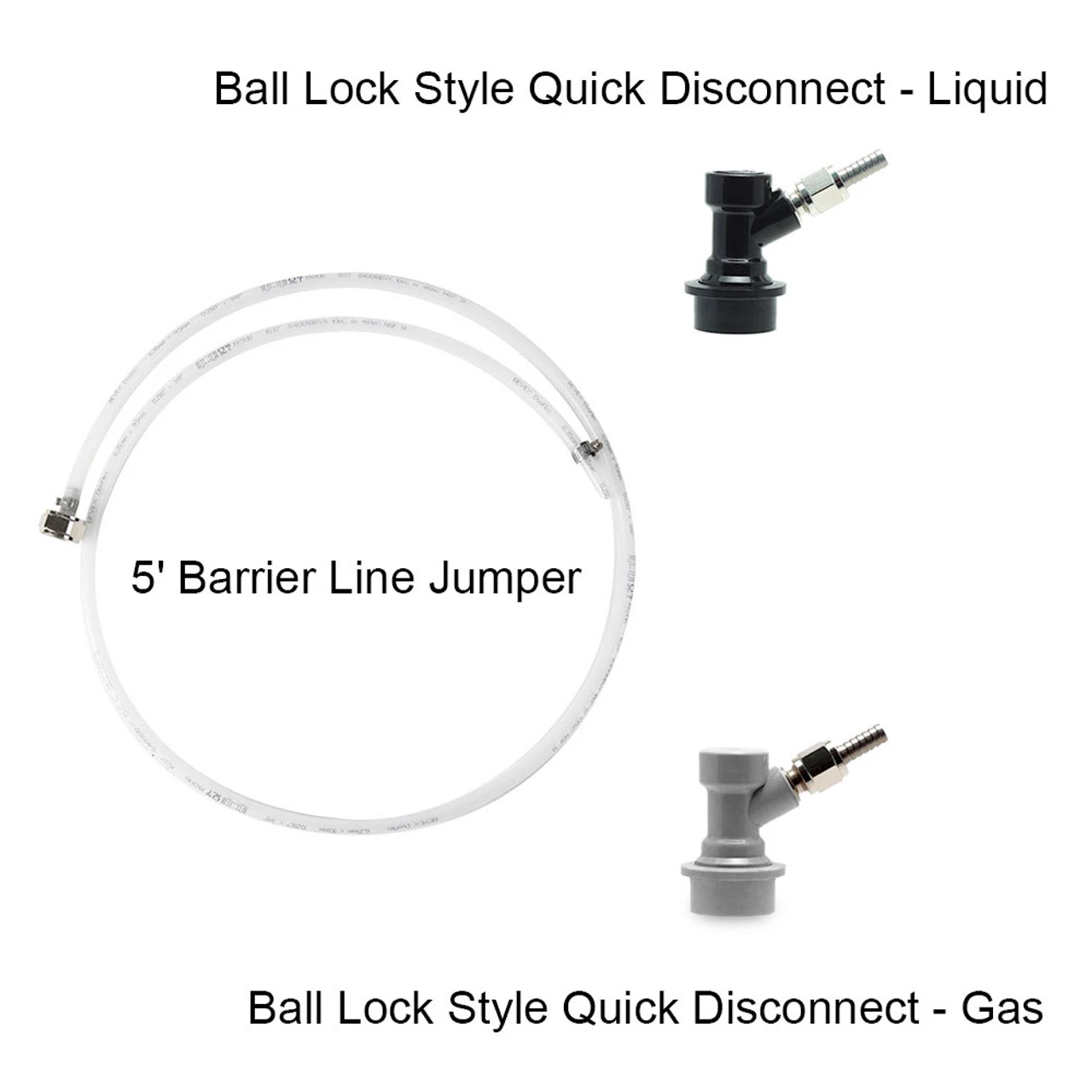

This set includes 5′ barrier line jumper with 1/4″ inner diameter with stainless steel connectors and liquid and gas ball style quick disconnects.The barrier line is the necessary setup you need for dispensing cold brew coffee from a corny keg.

The ball-lock disconnects make it easy to connect your Corny keg to your draft system. When you’re ready to install, pull up on the collar, place the disconnect over the proper port on your keg, then release. The internal spring will release and lock the disconnect in place. The ball lock disconnects are colored black for liquid and grey for gas to avoid confusion.

The disconnect for your gas line features an integrated barb outlet that fits 5/16″. inside diameter draft hose and the barb on the liquid disconnect fits 3/16″ diameter draft line. After sliding the line over the nipple, tighten the hose using a screw clamp.

• Made of food-grade barrier tubing with a stainless steel tail piece for premium quality
• Ball lock style quick disconnect for liquid with 3/16″ barb inlet
• Ball lock style quick disconnect for gas line with 5/16″ barb inlet
• Designed to work with homebrew coffee corny kegs

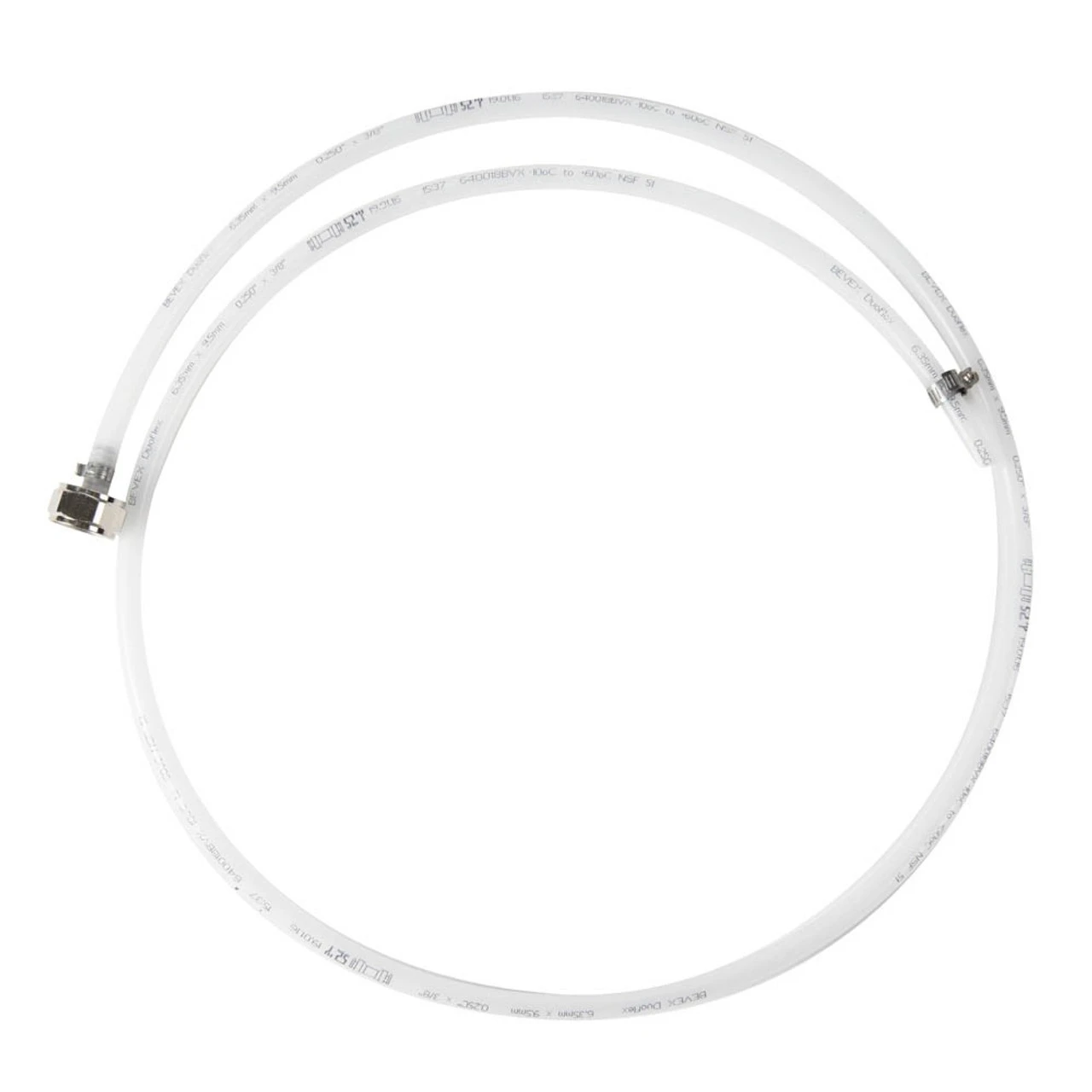

Barrier Line

• Dimension: 5’L x 1/4” inside diameter

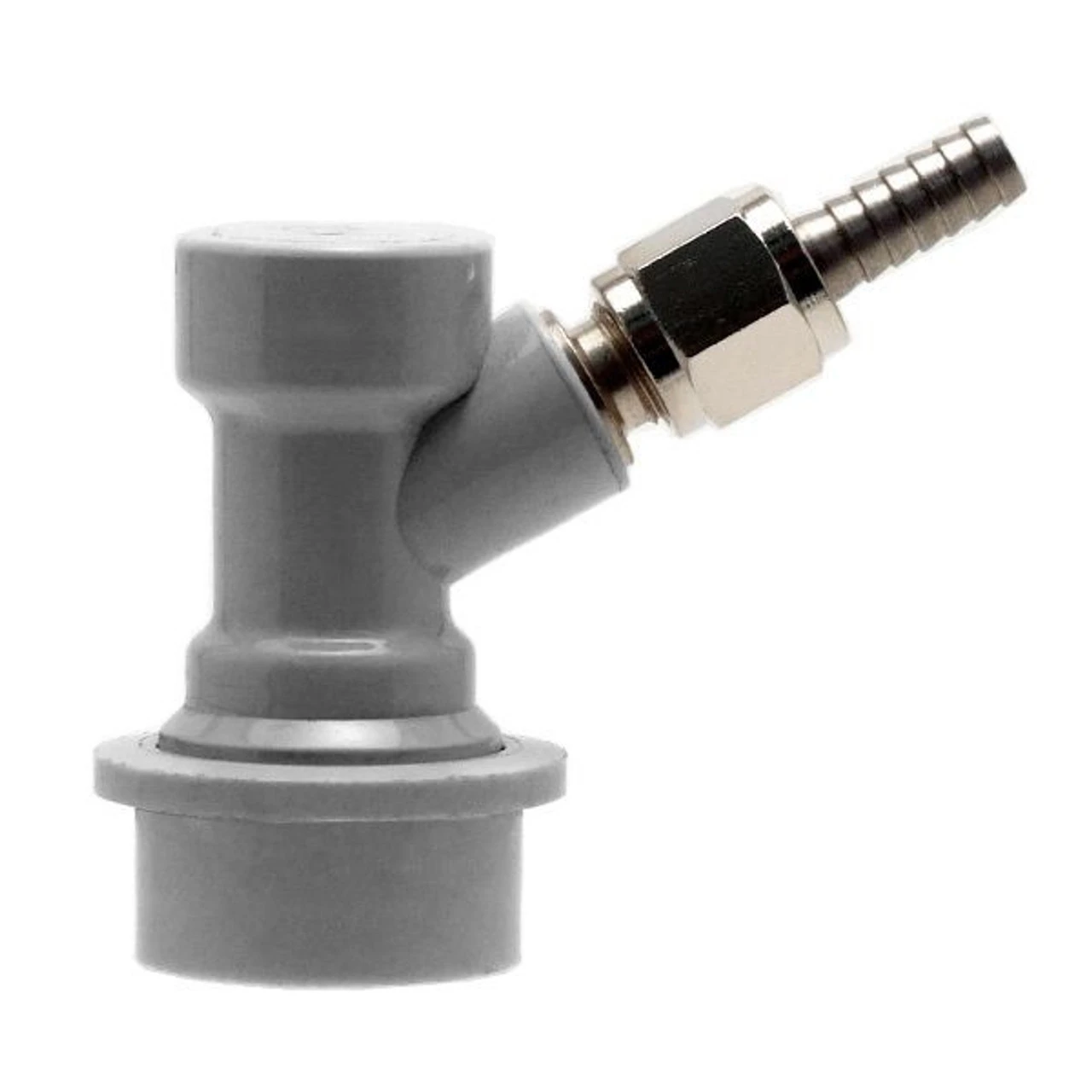

Ball Lock Style Quick Disconnect – Gas

• 5/16″ barb inlet

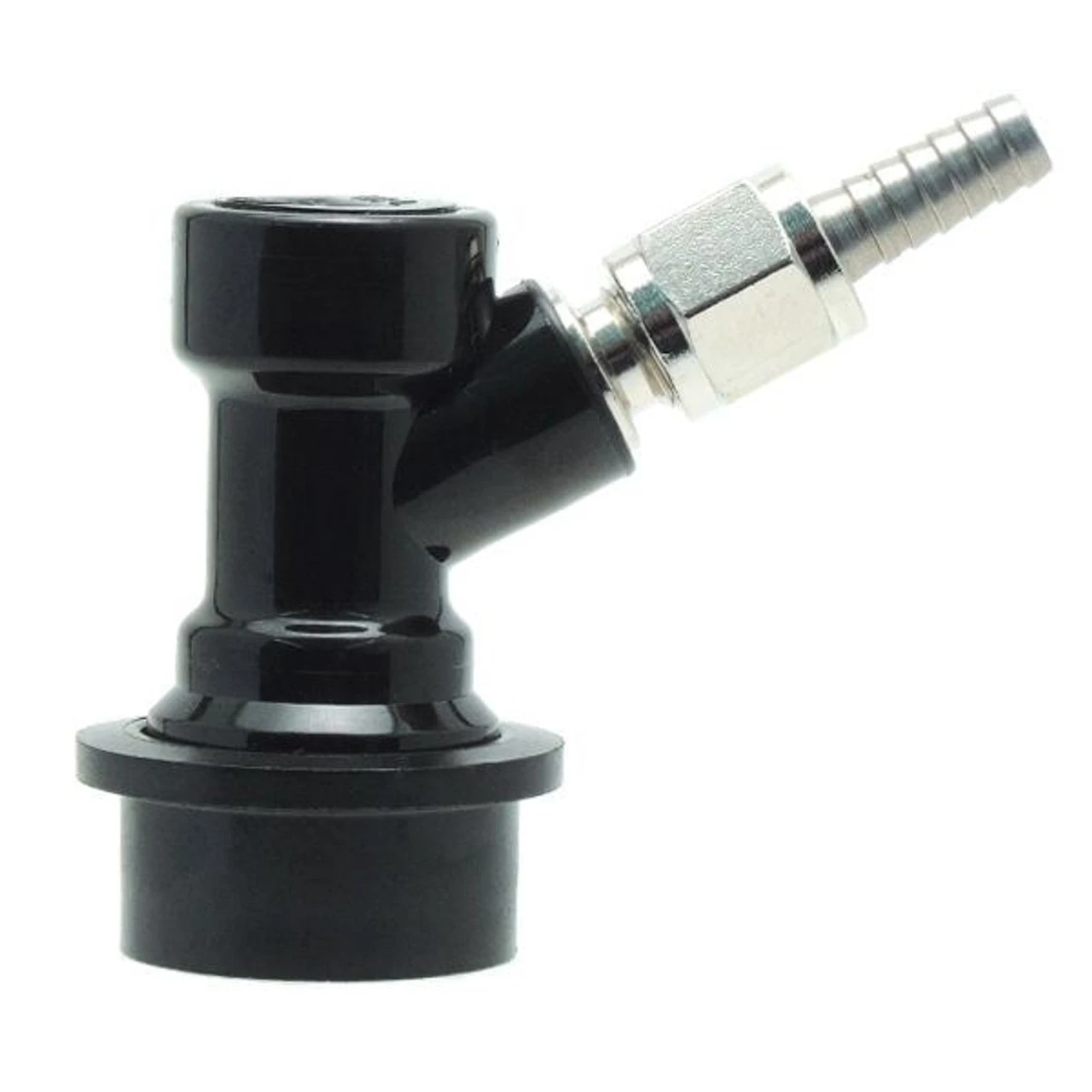

Ball Lock Style Quick Disconnect – Liquid

• Barb outlet fits 3/16” inside diameter draft hose
