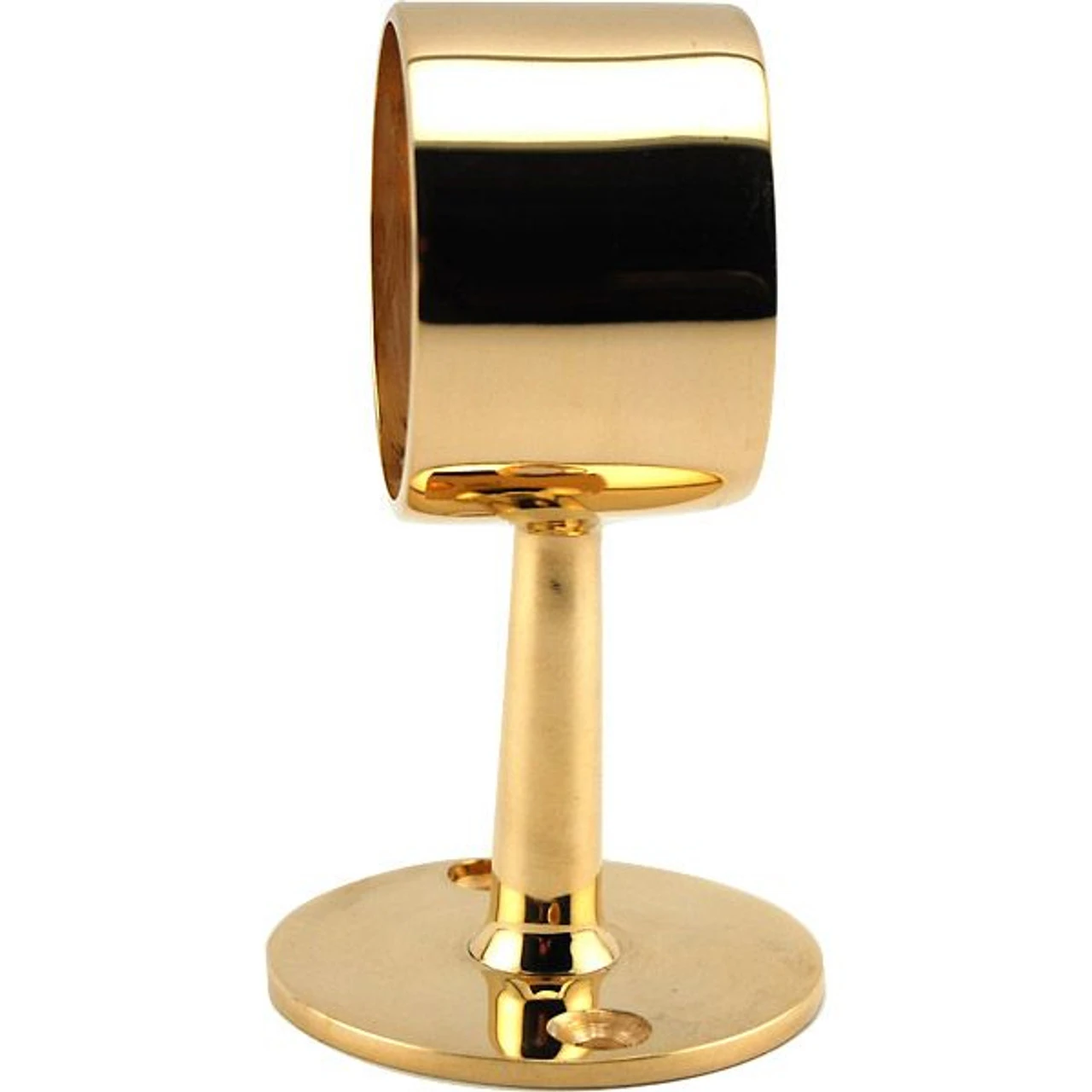

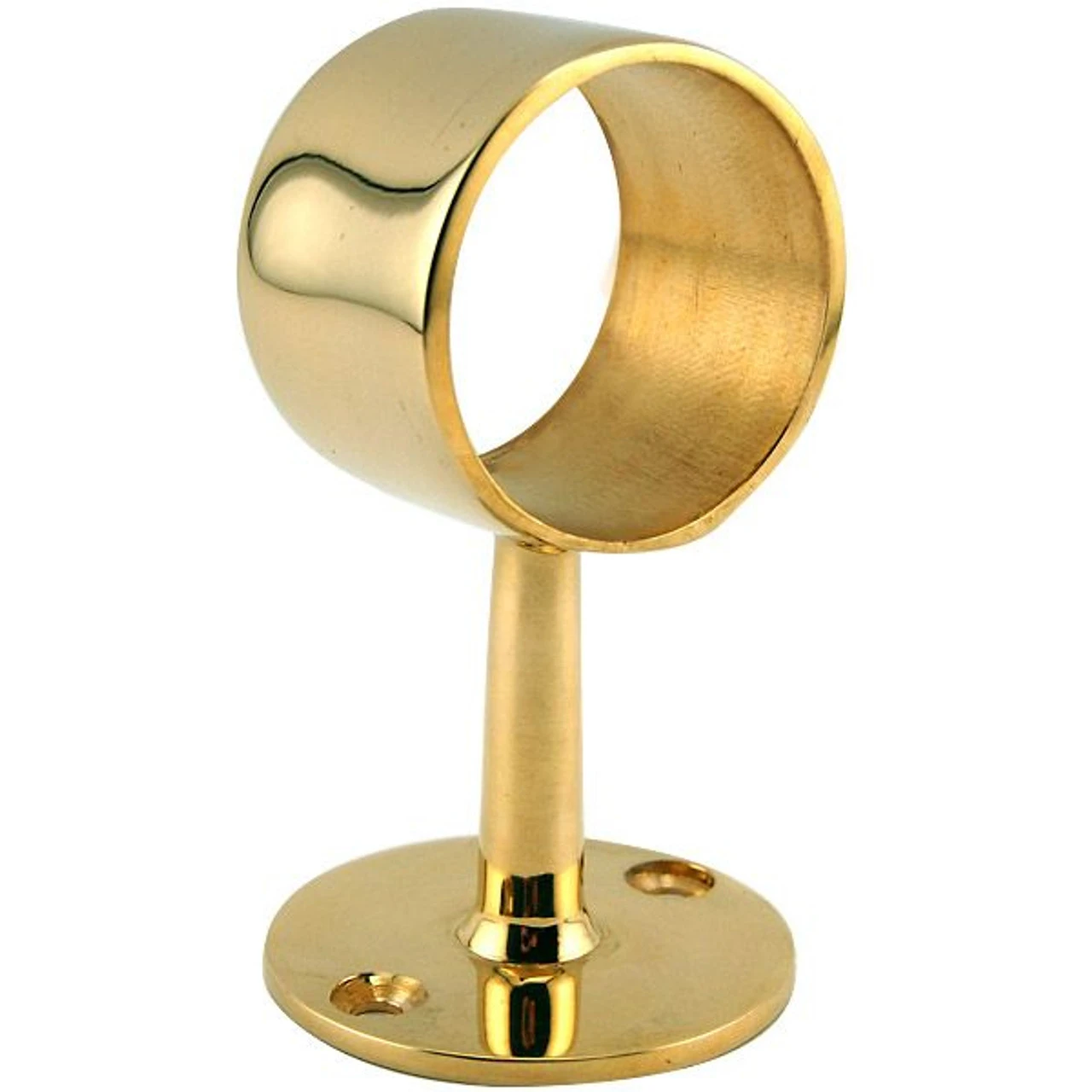

Center Post Foot Rail Bracket – Polished Brass – 2″ OD

Whether you’re looking to install bar foot rails, bar armrests, or handrails, this low clearance center post bracket is a simple, sturdy solution. With just one foot that can mount to a floor, wall, or bar facing, center posts make it easy to plan your project and install your bar rail tubing.

This stunning, shiny brass bracket will precisely match your . To install, use an electric screwdriver to attach the bracket onto the desired location of the tubing with the included set screw, then use the mounting screws to attach the bar bracket’s foot to the floor.

We also offer that match the finish and low-profile design of these bar foot rests.

Upon installation, this low clearance bar foot rail will sit approximately 4.5″ from the floor to the center of the tubing. It is perfect for situations where it’s better to place your bar rail in a more flush location to the floor or wall it is attached to.

Unlike bar mount, floor mount, 90-degree, or combination brackets, there is only one contact point with these center post bar brackets. For proper support, it is recommended to place one of these rounded center post bar foot rail brackets at each end of the tubing, plus one for every 4-foot increment. Be sure to measure precisely where to place the screws ahead of time.

Properly installed bar railing brackets ensure that your foot rail will hold up to the rigors of a whole bunch of feet resting on them. If you’re still unsure of which bracket will fit best in your bar, check out our for more information on each of the options.

• Made of polished brass
• Low clearance design
• For use with 2″ Outside Diameter bar rail tubing
• Bracket foot can mount directly to a floor, wall, or bar facing
• Brackets should be used at both ends of rail tubing, plus one at every 4′ increment
• Mounting screws included
• Suitable for indoor use only

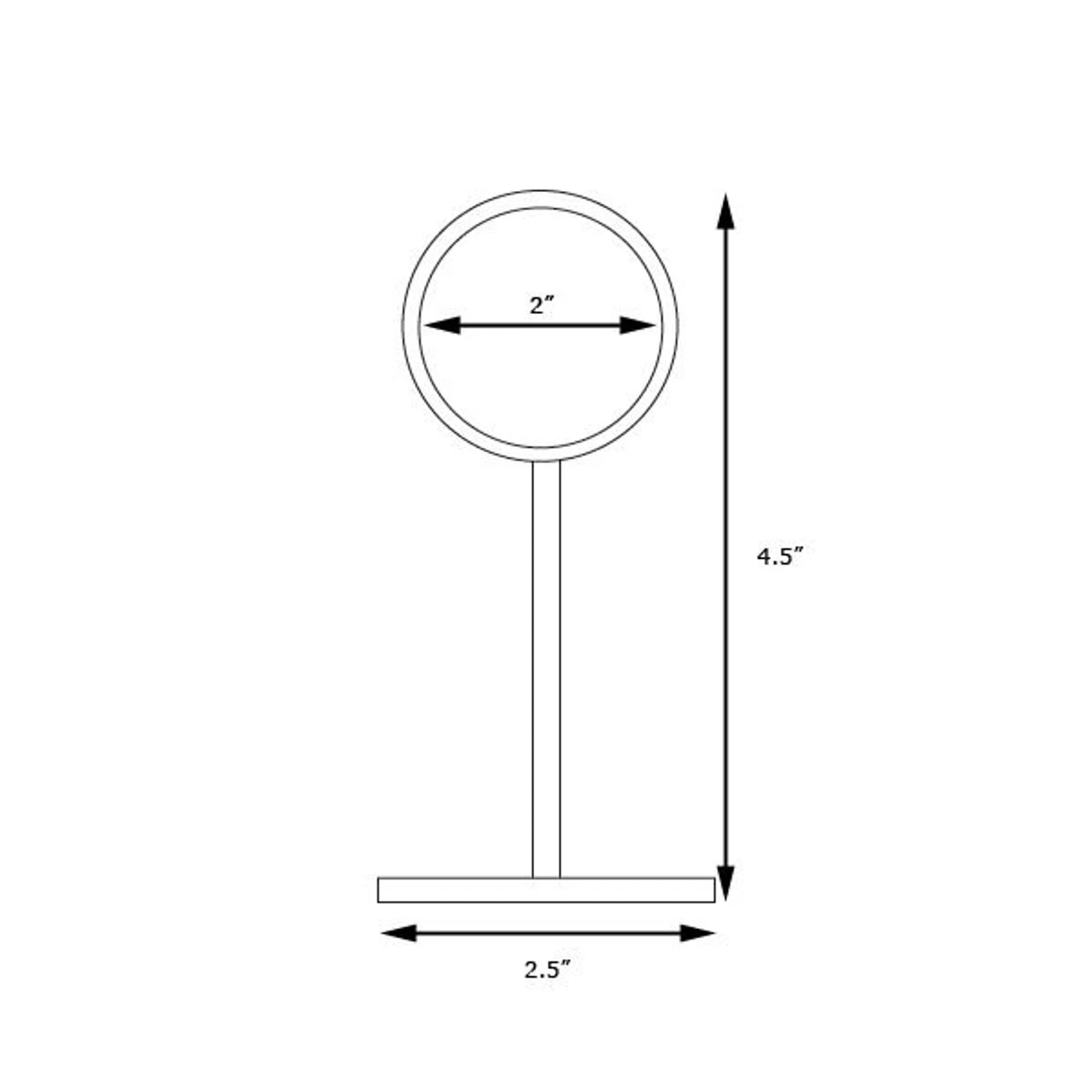

• Overall Dimensions: 2.5″W x 4.5″H
• Fits 2″ Outside Diameter Tubing
