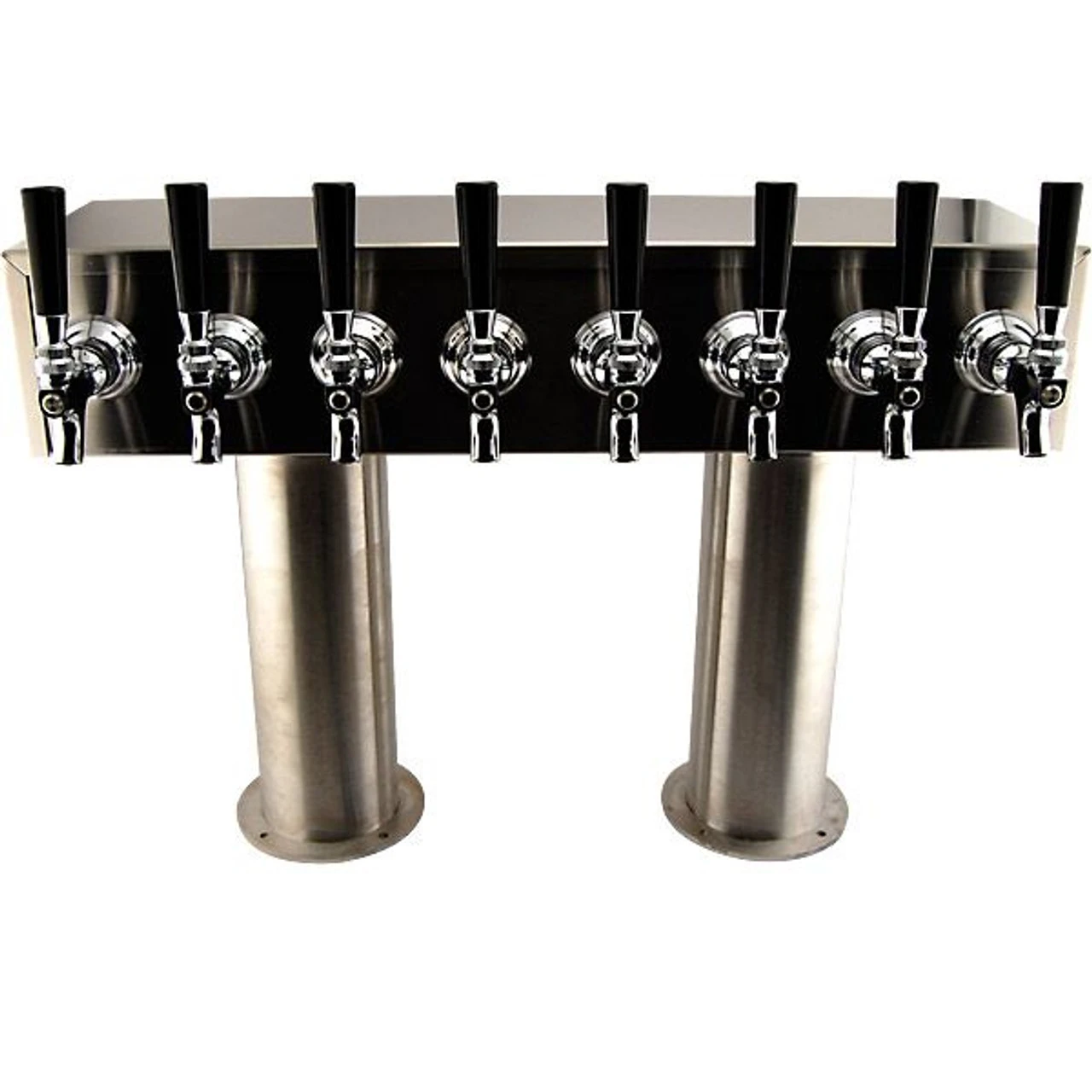

Double Pedestal Draft Beer Tower – Stainless Steel – 4″ Column – Air Cooled – 8 To 20 Faucets

An air-tight design, attractive style, and ability to serve up to 20 beers are just a few reasons why your bar deserves this Double Pedestal Draft Beer Tower.

This commercial-level H-style draft tower is crafted from 16-gauge stainless steel with a brushed satin finish. The result is a premium-quality, durable tower that’s built to withstand the heavy use of a commercial bar.

Because every bar is unique, you can configure your draft tower with between 8 and 20 faucets. Each faucet is made of premium chrome with brass stems.

This beer tower includes two 4-inch pedestals and uses an air cooling system to ensure an ideal, consistent temperature for all the beers you’re serving. For additional thermal efficiency, the tower and pedestal tubes come with ½-inch-thick insulation.

The beer tower measures 17 inches tall, and between 25 and 61 inches wide, depending on how many beer faucet taps you choose.

To make your new draft beer tower quick and easy to install, we assemble the hose and hex nut for each faucet, and include mounting screws. Mounting gaskets are not needed for installation.

• H-style double pedestal draft beer tower with 8, 10, 12, 14, 16, 18, or 20 faucets
• Serve up to 20 different beers at your home or commercial bar
• Made from heavy-duty stainless steel with brushed satin finish
• Premium chrome faucets with brass stems
• Air-tight construction
• Can be mounted on bar or counter top
• 4 in. pedestals with air cooling system
• ½-in. insulation in tower and beer lines
• Specially machined ¼ in. bore shanks with built-in tail pieces
• Comes with beer lines and installation hardware

• 4″ pedestal tubes
• Tower Box Dimensions: 7″D x 5″H
• Total height of Assembled Tower: 17″
• Faucet Span: 3″
• Tip of Faucet to Base: 13″
• Box Length
• 8 faucets 25″
• 10 faucets 31″
• 12 faucets 37″
• 14 faucets 43″
• 16 faucets 49″
• 18 faucets 55″
• 20 faucets 61″
• Center to Center of Pedestals
• 8 faucets 12.5″
• 10 faucets 15.5″
• 12 faucets 18.5″
• 14 faucets 21″
• 16 faucets 27″
• 18 faucets 33″
• 20 faucets 39″
• 8 Faucet Glycol Towers are built with 2 recirculation glycol lines
• 10 – 20 Faucet Glycol Towers are built with 4 recirculation glycol lines
• Free Custom Pedestal Spacing available upon request. Please call for more information
