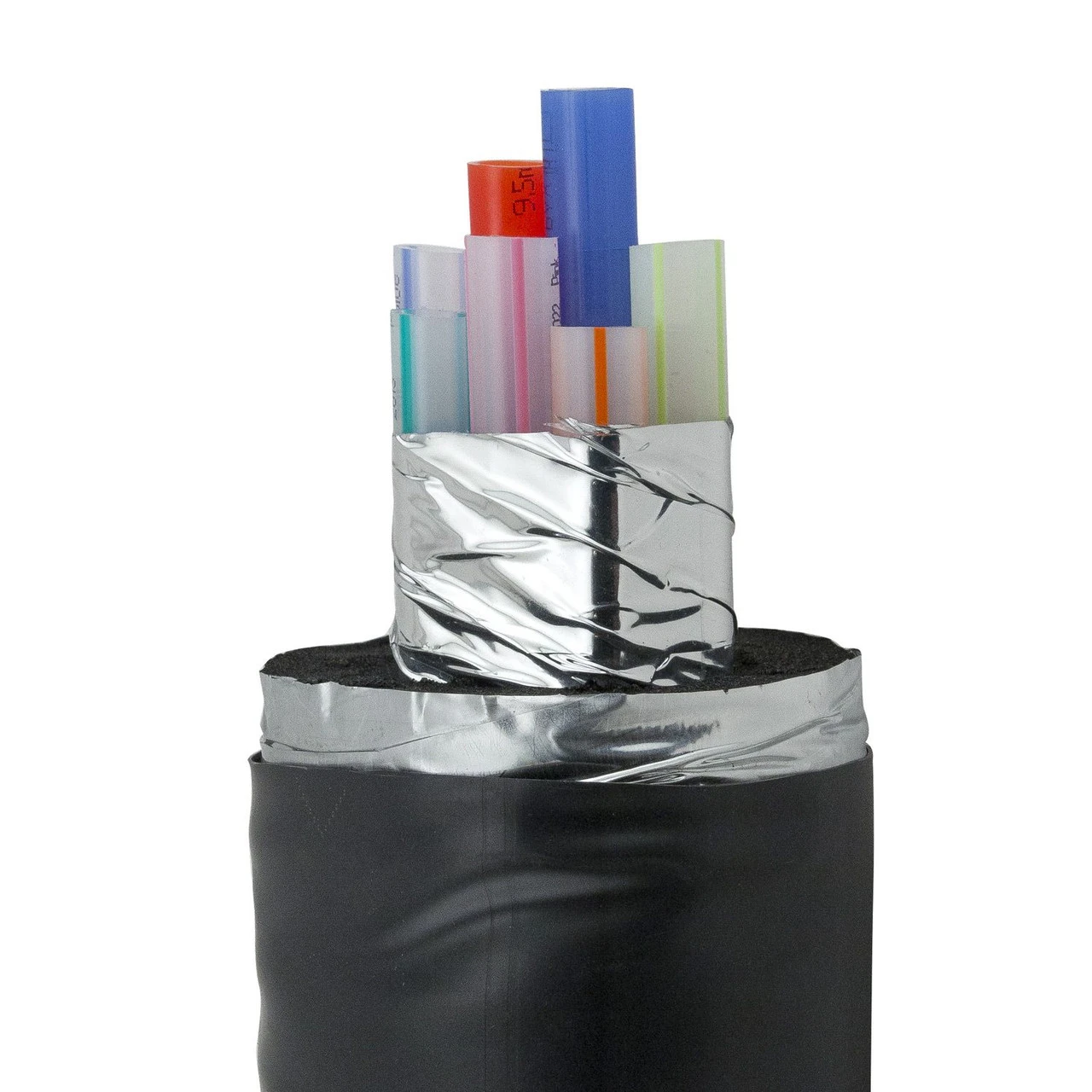

Glycol Trunk Line – 3/8″ ID X 3/4″ Wall – PVC Jacketed – By The Foot

Glycol-powered cooling systems featuring dependable glycol trunk line will help you ensure proper chilling of your draft beer. This trunk line features 3/8-inch draft beer lines, and a layer of tape provides excellent flexibility for easy installation and minimal gapping.

This glycol trunk line features a PVC jacket for an extra level of leak-resistance and low-maintenance performance.

For the majority of long draw or commercial draft beer systems, especially those running 6 or more beer lines or draft systems running over 15 feet, a glycol chiller is recommended. This system implements a separate chiller that uses the power of glycol to move beer further distances, while still keeping it cold from keg to tap. Propylene glycol, a non-toxic, food-grade antifreeze, is the main component that’s been used for many years in food-processing systems.

Propylene glycol is combined with water to create a chilled mixture that’s pumped from the  through the cooling lines that run parallel to your beer lines. Both distinct lines are kept cold by the internal moisture barrier in these trunk lines and foil wrap around each glycol line.

For your convenience we offer a variety of beer line/glycol line combinations to suit your dispensing needs exactly. Cold beer matters. You can trust this commercial-quality glycol trunk line for proper dispensing in your space.

Please Note: Glycol trunk line is sold by the foot.

• Thick foam insulation prevents freezing
• PVC jacket for extra leak-resistance, insulating performance
• Suitable for use with any glycol chiller system
• Color coded product lines & glycol tubes

• Beer Line: 3/8″ ID
• Glycol Line: 3/8″ ID
• Wall Insulation: 3/4″
• Restriction per Foot: .06 lbs
• Insulation Material: Armaflex Foam
• Jacket Material: Fire Rated PVC Jacket
• Product Tube Material: Barrier, Polyethylene Exterior, Barrier Coating
• Glycol Tube Material: Barrier, Polyethylene Exterior, Barrier Coating
• Bundle Outside Diameter:
  • 4 Beer Lines + 2 Glycol Lines: 2 3/4″ OD
  • 6 Beer Lines + 2 Glycol Lines: 3″ OD
  • 8 Beer Lines + 2 Glycol Lines: 3 1/4″ OD
  • 10 Beer Lines + 4 Glycol Lines: 3 1/2″ OD
  • 12 Beer Lines + 4 Glycol Lines: 3 3/4″ OD
