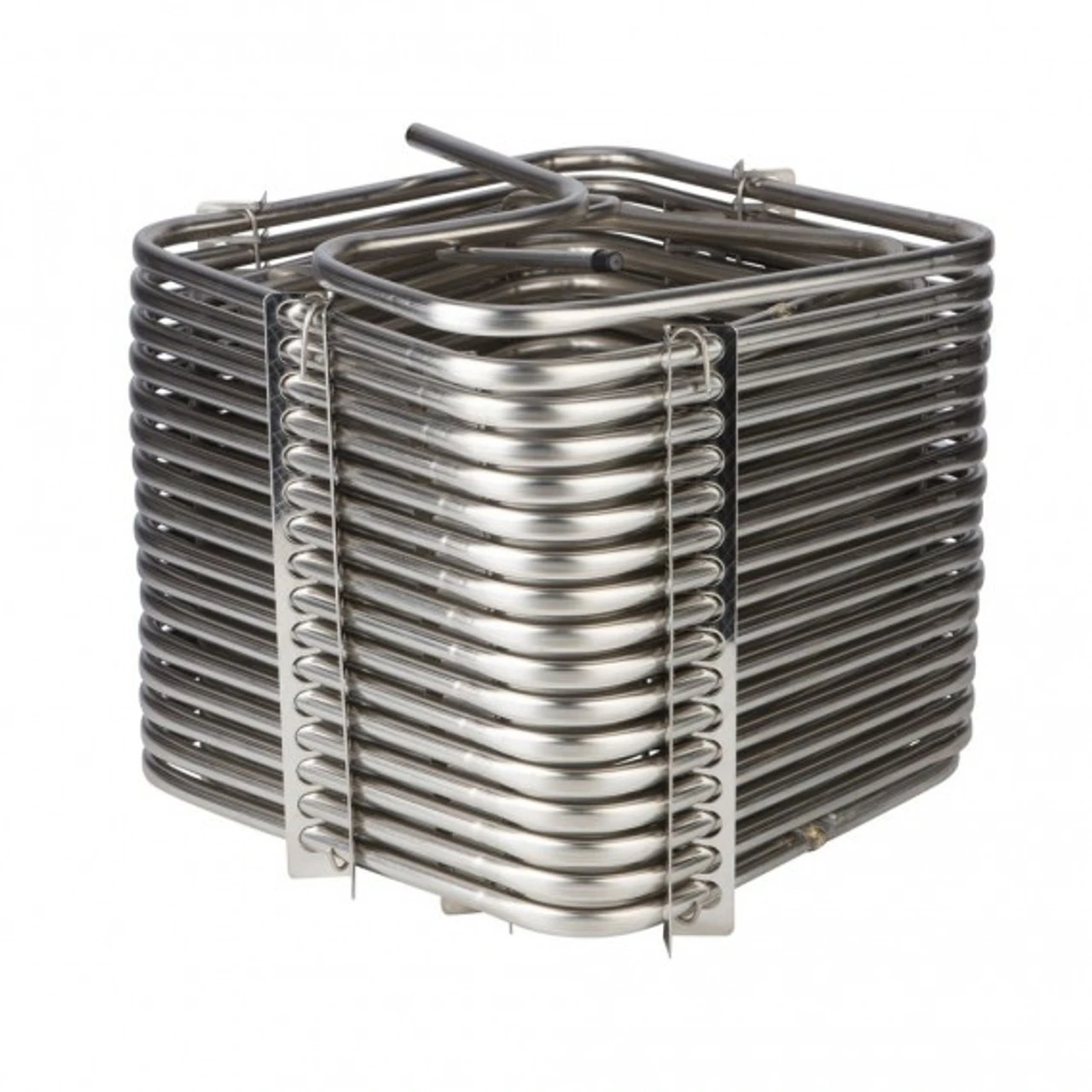

Square Jockey Box Coil – 120′ – Stainless Steel – High Efficiency

Pour your draft beer more efficiently than ever with this 120-foot jockey box coil.

Jockey box coils are designed to cool your beer as it travels through the coil. They sit inside a cooler, in an ice bath. With regular cleaning, these 304 stainless steel coils will not cause funky flavors in your brew over time. This jockey box coil is designed in an innovative square shape to help provide a snugger, more secure fit in your cooler. It utilizes unique spacer legs to create a slight elevation that allows your ice bath to chill from underneath, resulting in a more consistently cold, less foamy product.

This 120-foot long jockey box coil includes hex nuts, ferrules, and rubber grommets on each side for connection to your cooler coupling in the back and beer shank in the front. The 120-foot length offers a large amount of surface area for rapid, efficient cooling of your beer, making this a great option for events with high-volume dispensing.

In 5/16″ outside diameter, these coils are the right size for the majority of larger jockey box kits. Set up your jockey box no more than 10 feet from your ice cold keg. Attach the beer line from the top of the keg coupler to the cooler coupling, and the air line from the outlet barb on the CO2 regulator to other side of the coupler. Adjust the keg regulator to 40-60 PSI based on your setup. Keep both the jockey box coils and keg cold throughout to avoid foaming (no more than 40° F).

Be sure to wash out your lines and coils after each use, just as you would normally . Check out our  for more information on completing your setup.

Please note: this product listing includes the square 120′ coil and fittings only. Check out our for full kits, build-your-own kits, and more!

• Made of 304 stainless steel
• Square shape for better fit in cooler
• Sits on spacer legs to allow cold water to chill brew from underneath
• Larger surface area makes this coil perfect for high-volume dispensing situations
• Includes hex nuts, ferrules, and rubber grommets on either side for easy connection

• Coil O.D.: 5/16″
• Coil Length: 120′
• Coil Dimensions: 9″H x 9 1/2″W x 9 1/2″D
