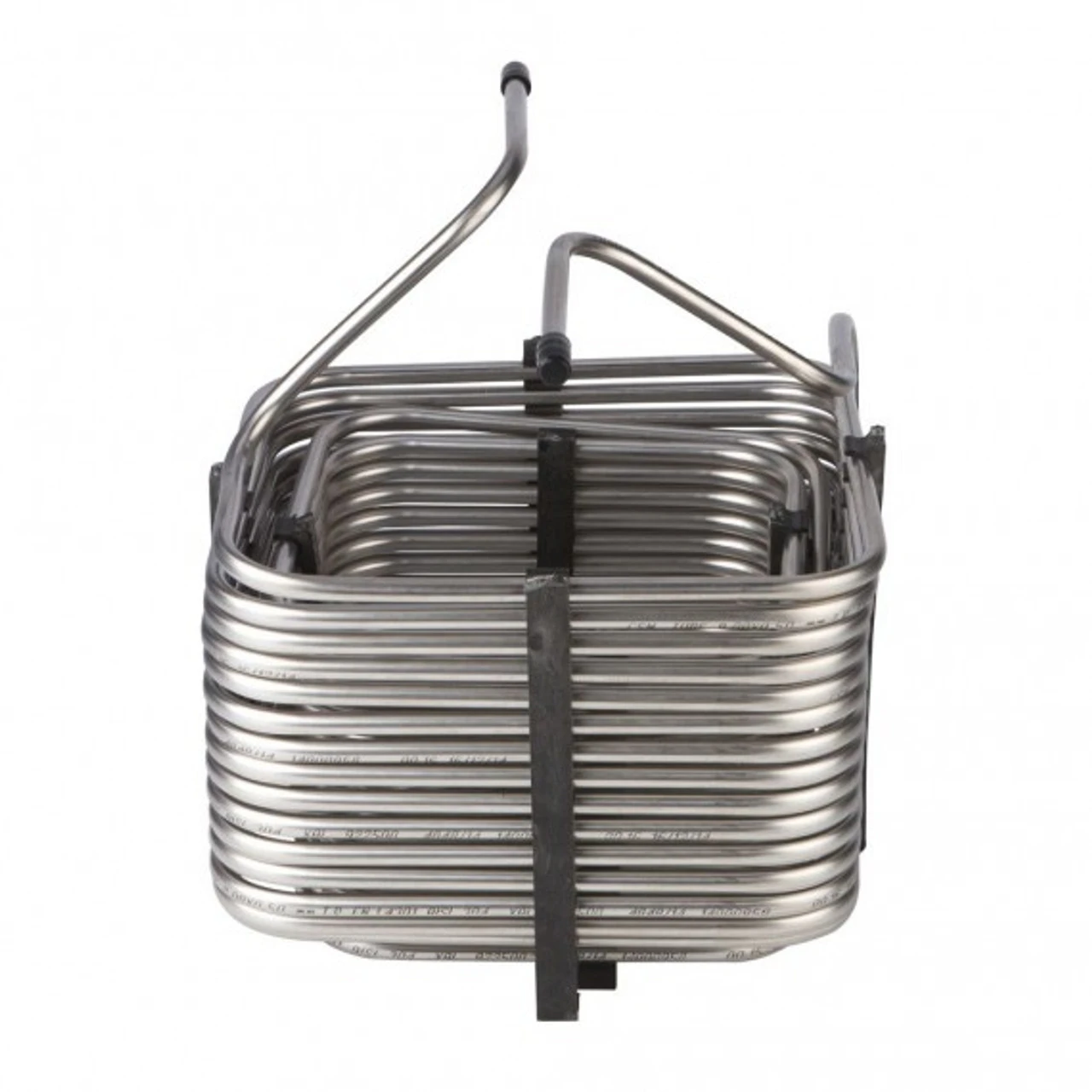

Square Jockey Box Coil – 70′ – Stainless Steel – High Efficiency

Whether you’re adding to a jockey box kit or making your own DIY jockey box, you’re going to need coils. These square coils use a unique design to get fully cooled quicker and more efficiently. Their extra long design assists in giving your jockey box maximum cooling power.

Jockey box coils are designed to cool your beer as it travels through the coil. They sit inside a cooler, in an ice bath. With regular cleaning, these 304 stainless steel coils will not cause funky flavors in your brew over time. This jockey box coil is designed in an innovative square shape to help provide a snugger, more secure fit in your cooler. It utilizes unique spacer legs to create a slight elevation that allows your ice bath to chill from underneath, resulting in a more consistently cold, less foamy product.

This 70-foot long jockey box coil includes hex nuts, ferrules, and rubber grommets on each side for connection to your cooler coupling in the back and beer shank in the front. The extra long 70′ design means that the beer takes longer to travel through the coils and there is more surface area for your beer to be cooled by the ice water bath, meaning your beer will be as cold as possible when it reaches your glass.

In 1/4″ outside diameter, these coils are the right size for the majority of jockey box kits. Set up your jockey box no more than 10 feet from your ice cold keg. Attach the beer line from the top of the keg coupler to the cooler coupling, and the air line from the outlet barb on the CO2 regulator to other side of the coupler. Adjust the keg regulator to 40-60 PSI based on your setup. Keep both the jockey box coils and keg cold throughout to avoid foaming (no more than 40° F).

Be sure to wash out your lines and coils after each use, just as you would normally  . Check out our   for more information on completing your setup.

Please note: this product listing includes the square 70′ coil and fittings only. Check out our for full kits, build-your-own kits, and more!

• Made of 304 stainless steel
• Essential equipment for a jockey box
• Square shape for better fit in cooler
• Spacer legs elevate coil off ground to allow cold water to chill brew from underneath
• 1/4″ outside diameter
• Includes hex nuts, ferrules, and rubber grommets on either side for easy connection

• Coil O.D.: 1/4″
• Coil Length: 70′
• Coil Dimensions: 6 1/2″H x 9″W x 9″D
