Stainless Steel Coil For Jockey Box – 70′ Length – Mini

Whether you’re adding to a jockey box kit or making your own DIY jockey box, you’re going to need coils. In a compact design, these mini coils are made to fit any system. Their extra long design gives your jockey box maximum cooling power.

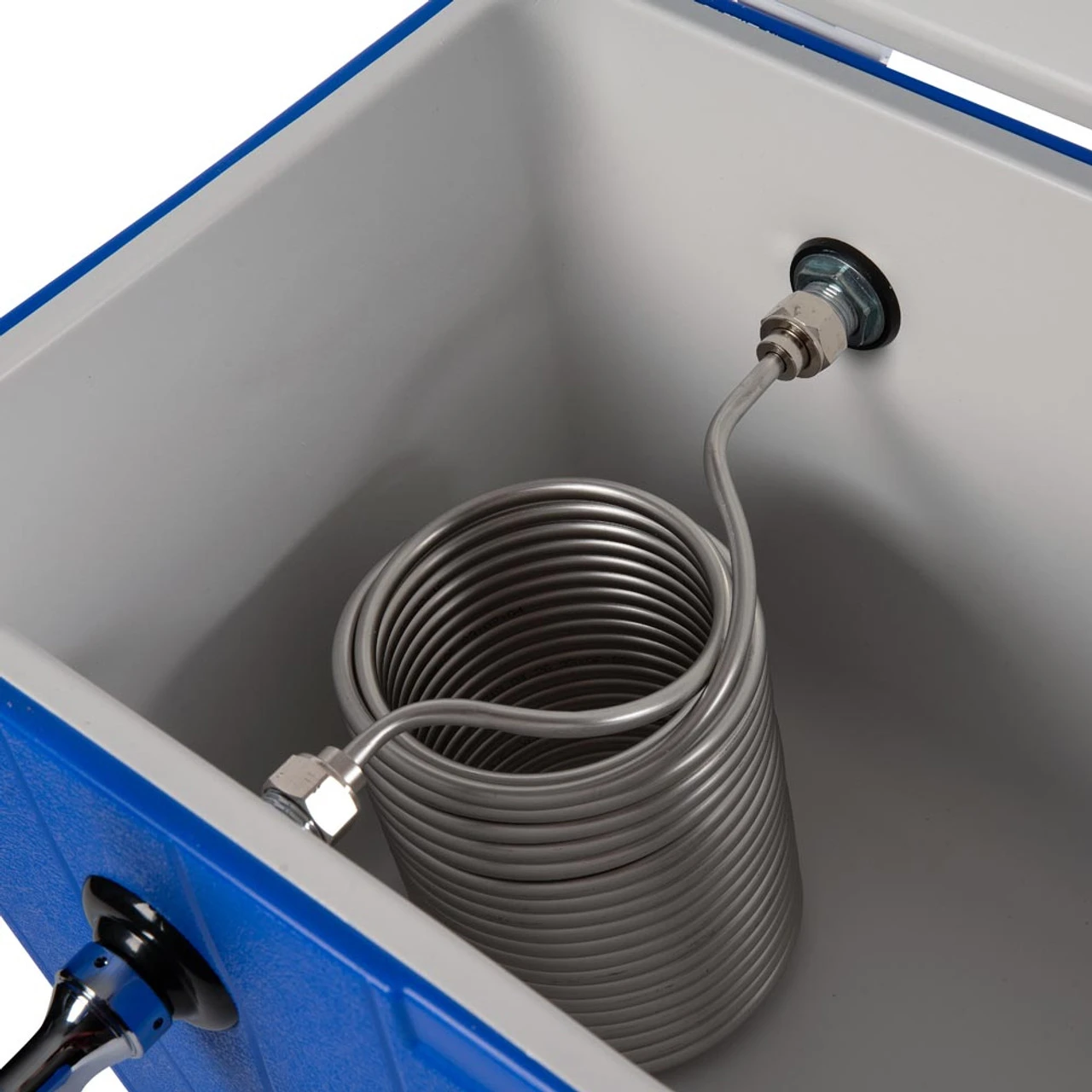

Jockey box coils are designed to cool your beer as it travels through the coil. They sit inside a cooler, in an ice bath. These mini, 304 stainless steel coils will not corrode over time with regular cleaning. They are extra compact to give you maximum space inside your cooler to offer more taps or to pour in more ice water.

This 70-foot long jockey box coil includes hex nuts, ferrules, and rubber grommets on each side for connection to your cooler coupling in the back and beer shank in the front. The extra long 70′ design means that the beer takes longer to travel through the coils and there is more surface area for your beer to be cooled by the ice water bath, meaning your beer will be as cold as possible when it reaches your glass.

In 5/16″ outside diameter, these coils are the right size for the majority of jockey box kits. Set up your jockey box no more than 10 feet from your ice cold keg. Attach the beer line from the top of the keg coupler to the cooler coupling, and the air line from the outlet barb on the CO2 regulator to other side of the coupler. Adjust the keg regulator to 40-60 PSI based on your setup. Keep both the jockey box coils and keg cold throughout to avoid foaming (no more than 40° F).

Be sure to wash out your lines and coils after each use, just as you would normally . Check out our  for more information on completing your setup.

Please note: this product listing includes the mini 70′ coil and fittings only. Check out our for full kits, build-your-own kits, and more!

• Made of 304 stainless steel
• Essential equipment for a jockey box
• 70-foot length for maximum cooling power
• More compact design allows more room for taps and/or ice water
• 5/16″ outside diameter
• Includes hex nuts, ferrules, and rubber grommets on either side for easy connection

• Overall Coil Dimensions: 9.5″ H x 5.25″ W
• Coil Dimensions: 70′ L x 5/16″ OD
